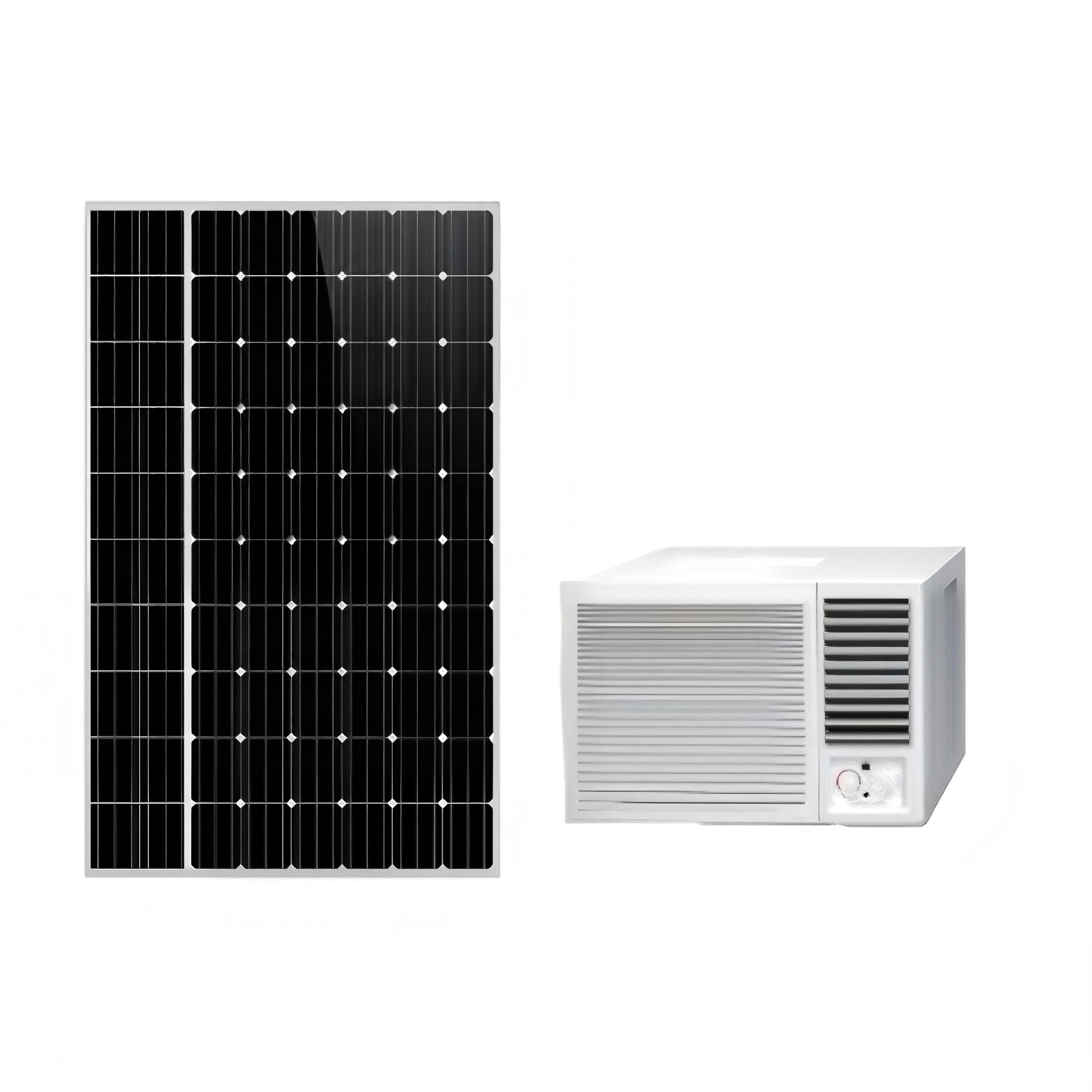

ACDC Solar Window Air Conditioner
Product Item：ACDC Solar Window Air Conditioner Funcitions: Cooling & Heating；Cooling Only Capacity:12000BTU Four Modes： 1.PUREPHOTOVOLTAIC AND GRID DRIVE 2.AC/DC HYBRID 3,ENERGY SAVING 4.3IN1 MULTIFUNCTION
Description
Solar Hybrid Air Conditioner Introduction

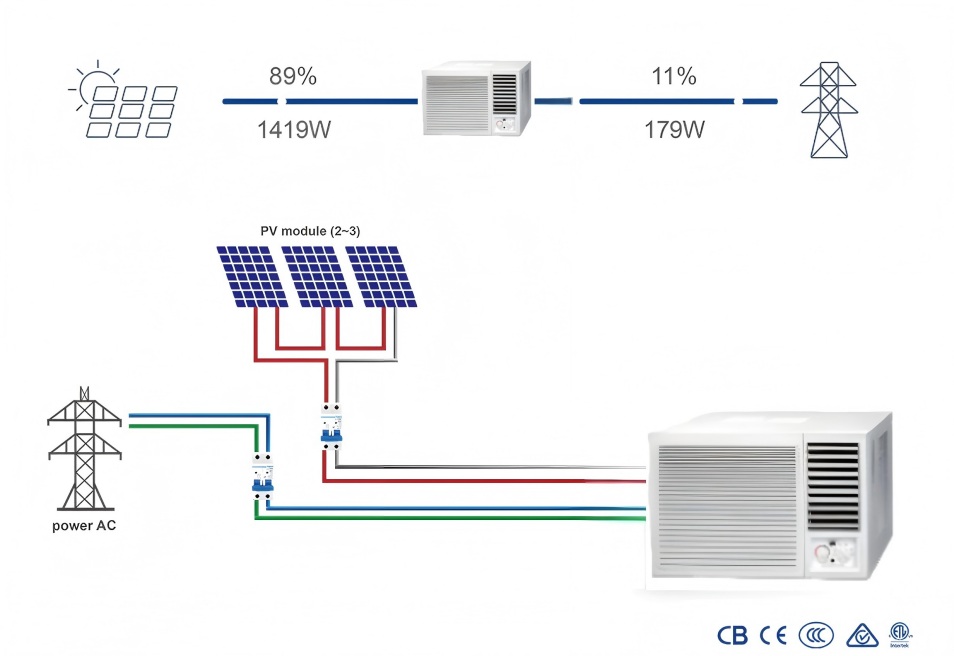

Xrise 4th generation hybrid ACDC solar air conditioner works with solar panel unstable DC power directly from 7am to 17pm day time with power minimum 300w, no need solar inverter, no need grid power, no need battery. Rainy day, it will works mix power AC+DC and priority from solar power. At night, it automatically get grid AC power same as DAIKIN high efficiency normal inverter air conditioner. The unit with WiFi function can be controlled anywhere through WiFi or Bluetooth, and App with DC power meter and AC power meter, you can fully check how much energy saving or using energy through APP smart power meter function.
Core Technology:
1.Low power consumption and high energy saving efficiency;
2.All DC：dc compressor, dc motor , dc valve;
3. Variable speed air compressor to achieve the soft start and quick cooling / heating;
4. Wider working frequency range and DC working voltage range;
5. Smooth running with low noise level;
6. The working voltage for off grid solar air conditioner system is 48V DC which is easy to configure the system.
7. T3 Tropical 58 degree working；
8. APP control and power saving indicator are optional.
Solar Air Conditioner Technology
Datasheet
| Window Type Solar Air Conditioner | ||||
| Model | Unit | XR-ACDC1-12KR2 | XR-ACDC1-18KR2 | |
| Power supply | Power AC | Ph-V-Hz | 115V/60HZ | 115V/60HZ |
| Power DC,PV,series connection | Voc | 80-380V | 80-380V | |
| Isc | </=14A | </=14A | ||
| Rated Cooling | Capacity(T1) | W | 3500 | 4500 |
| BTU | 12000 | 18000 | ||
| Power input(T1) | W | 1100 | 1450 | |
| Max Power Input | W | 1700 | 2300 | |
| Dehumidification capacity | L/h | 1 | 1 | |
| Indoor air flow(Hi/Mi/Lo) | m3/h | 500/450/400 | 600/550/500 | |
| Noise level | dB(A) | ≤56 | ≤56 | |
| unit | Dimension(W×H×D) | mm | 520×480×370 | 520×480×370 |
| Packing(W×H×D) | mm | 600×560×430 | 600×560×430 | |
| Net/Gross weight | Kg | 25.0/34.0 | 25.0/34.0 | |
| Refrgerant type and charge volume | g | R32(450) | R32(450) | |
| Max Design pressure(Discharge/Suction) | MPa | 4.3/1.5 | 4.3/1.5 | |
| Operation temp | ℃ | 16℃~32℃ | 16℃~32℃ | |
| Ambient temp(cooling/heating) | ℃ | 16-55/-7-31 | 16-55/-7-31 | |
| Application area | m2 | 8-15 | 15-25 | |
