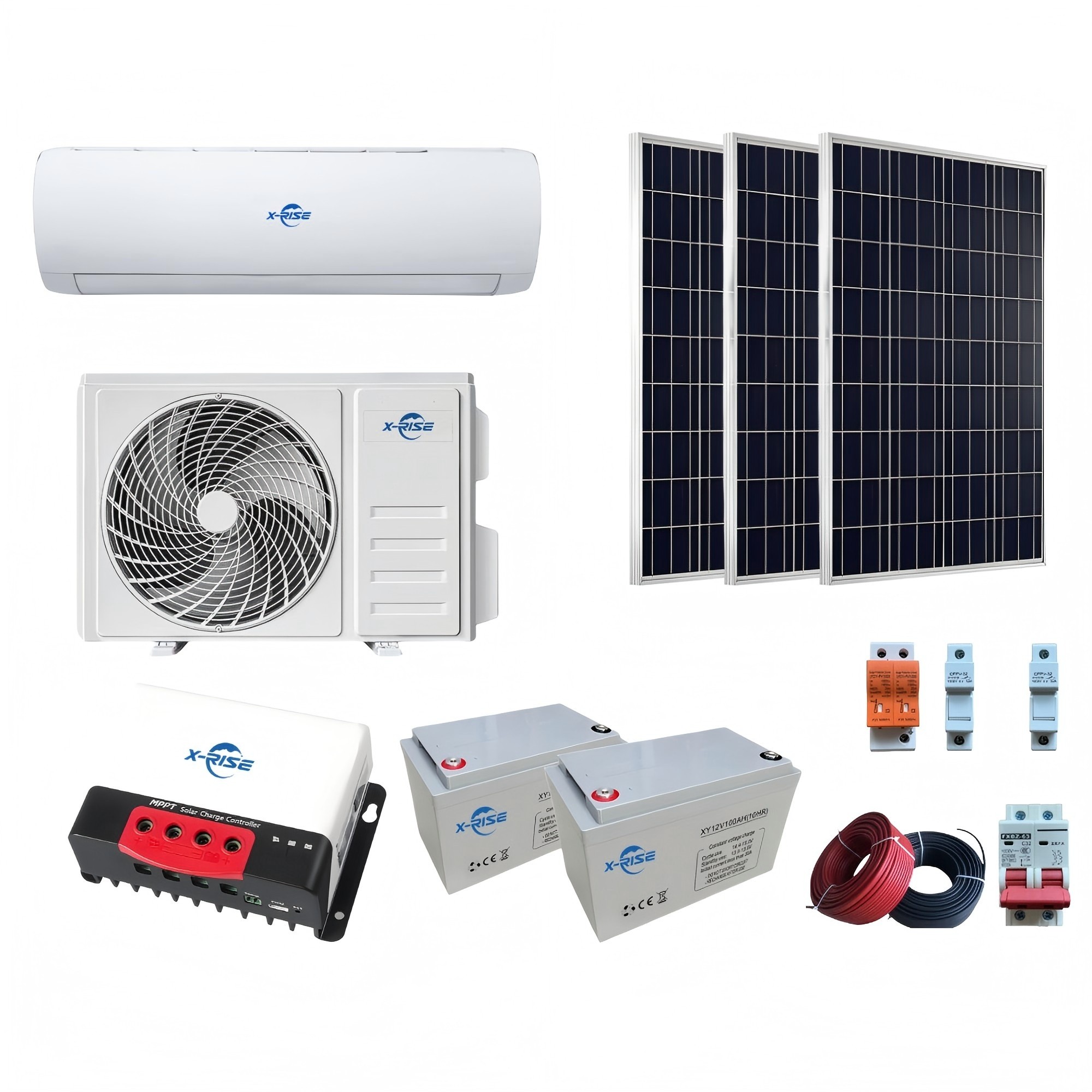

DC 24000BTU/3HP Solar Air Conditioner

Off-grid Solar Air Conditioner
With 100% DC system and batteries storage
Xrise solar air conditioner has no waste of energy and has no electricity bills.It is a high efficiency and Eco-friendly product.
Model No.:XRIDC24000-V2
Cooling/Heating:Cooling/Heating
Capacity:24000btu/3hp/2tons
Specification:Indoor Unit 1160*390*300
Outdoor Unit1020*430*755(mm)
Weight:G.W76kg,N.W72kg
Application Area:30-45 M²
Power：Solar Power

Inquiry

Description

OFF Grid Solar Air Conditioner Introduction

All Xrise DC off grid models use DC compressors and other components (DC motors, DC fans, DC valves, ect.). While Inverter Air Conditioners are more powerful and use less energy than a fixed speed air conditioner.The DC off grid solar air conditioner will use solar panel power solar air conditioner in the day and charge the battery together,the battery will power the solar air conditioner in the evening to make sure the system work 24 hours all the day.
Xrise 4th generation DC off grid solar air conditioner is based on full DC inverter air conditioner VRF technology. The main components of our unit is DC inverter compressor, DC fan motor, solar MPPT boosterand inverter air conditioner controller.
The hybrid ACDC unit power supply from outdoor unit, it has MC4connector P+/P- for DC solar panel directly power supply, it has solar and battery supply power torether. And indoor unit connect with outdoor unit by connection cable. Please check below structure design.

24000BTU-Advantages-Of-DC-Off-Grid-Energy-Intelligent-Fault-Detection-Solar-Wall-Mounted-Solar-Air-Conditioning .png

Core Technology:
1.Low power consumption and high energy saving efficiency;
2.All DC：dc compressor, dc motor , dc valve;
3. Variable speed air compressor to achieve the soft start and quick cooling / heating;
4. Wider working frequency range and DC working voltage range;
5. Smooth running with low noise level;
6. The working voltage for off grid solar air conditioner system is 48V DC which is easy to configure the system.
7. T3 Tropical 58 degree working；
8. APP control and power saving indicator are optional.

24000BTU-Cost-Optimization-Efficient-Heat-Recovery-System-Off-Grid-Solar-Air-Conditioning .png

Xrise havs own 180°sine wave DC inverter controller technology for inverter air conditioner, “SVPWM” which makes the compressor ran at low frequency below 0.1Hz, improve the utilization of the DC compressor by 13% compared with 120 DC inverter controller technology. By 32% compared with Non-inverter air conditioner.

24000BTU-Long-Lifespan-Ultra-Quiet-Operation-Pure-Solar-Powered-Solar-Air-Conditioner .png

24000BTU-DC-Valve-Advanced-Design-Off-Grid-Portable-Installation-Solar-Air-Conditioning.png

Solar Panel Recommend And Cables Connection

DC Off-Grid solar inverter air conditioner is ideal for areas and regions lack/short of power, especially for remote telecom stations, container houses, motor homes, remote locations, load shedding places, boating and island locations, ect.. Due to the latest advancement of the electronic control and power shifting technology, this DC Off Grid solar air conditioner will realise operating by 100% solar power.
Embracing the 100% Off Grid 48V/72V/96V DC Inverter Solar Air Conditioners will reduce operating costs by up to 100% during the day and night due to ZERO consumption of utility power. The 100% Off Grid Units use a combination of solar power and power bank.
DC48V solar air conditioner works with DC battery power 46V to 58V directly.The air conditioner part installation is same with normal inverter air conditioner installation. For off grid solar part installation with charge controller please get solar engineer finish with right calculation.
