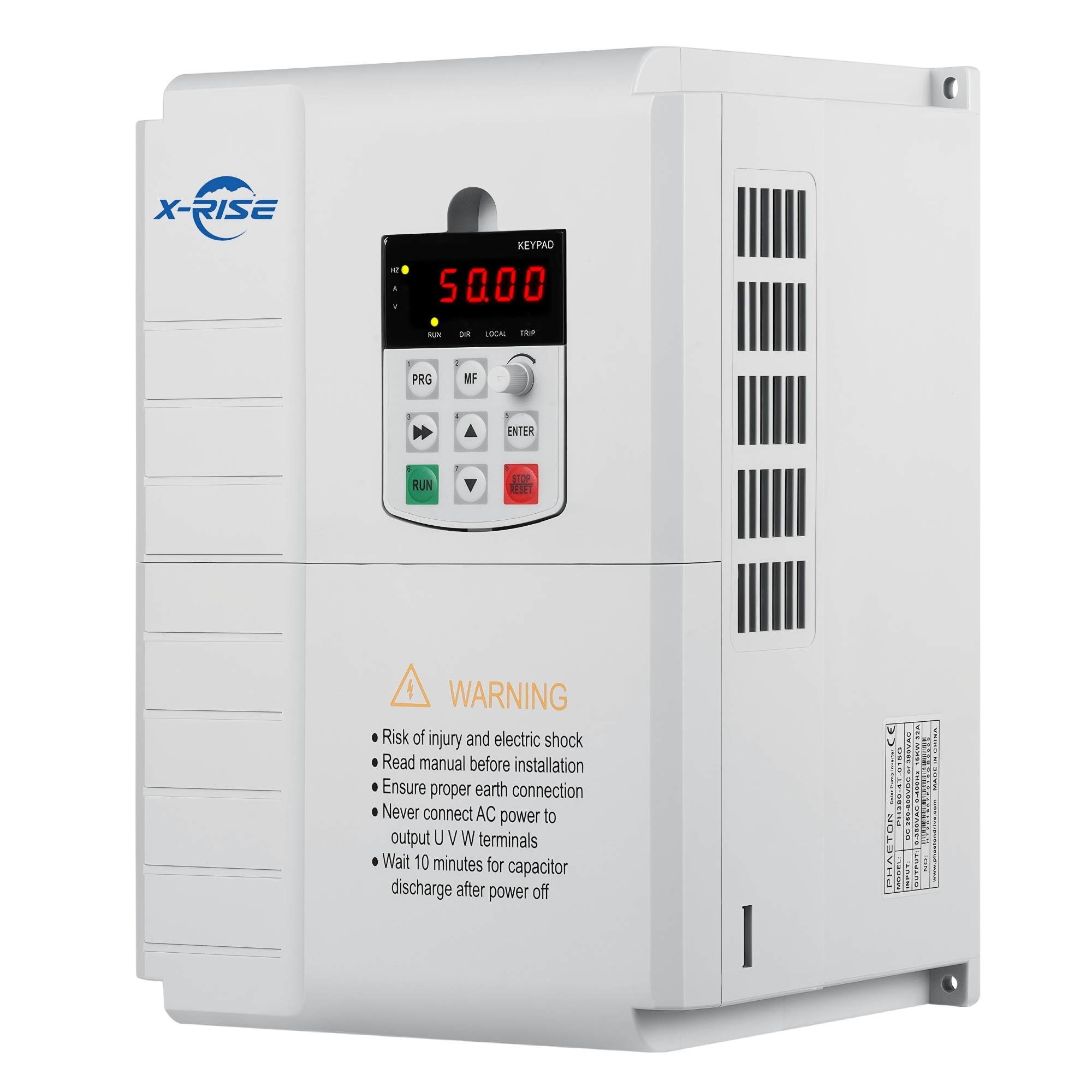

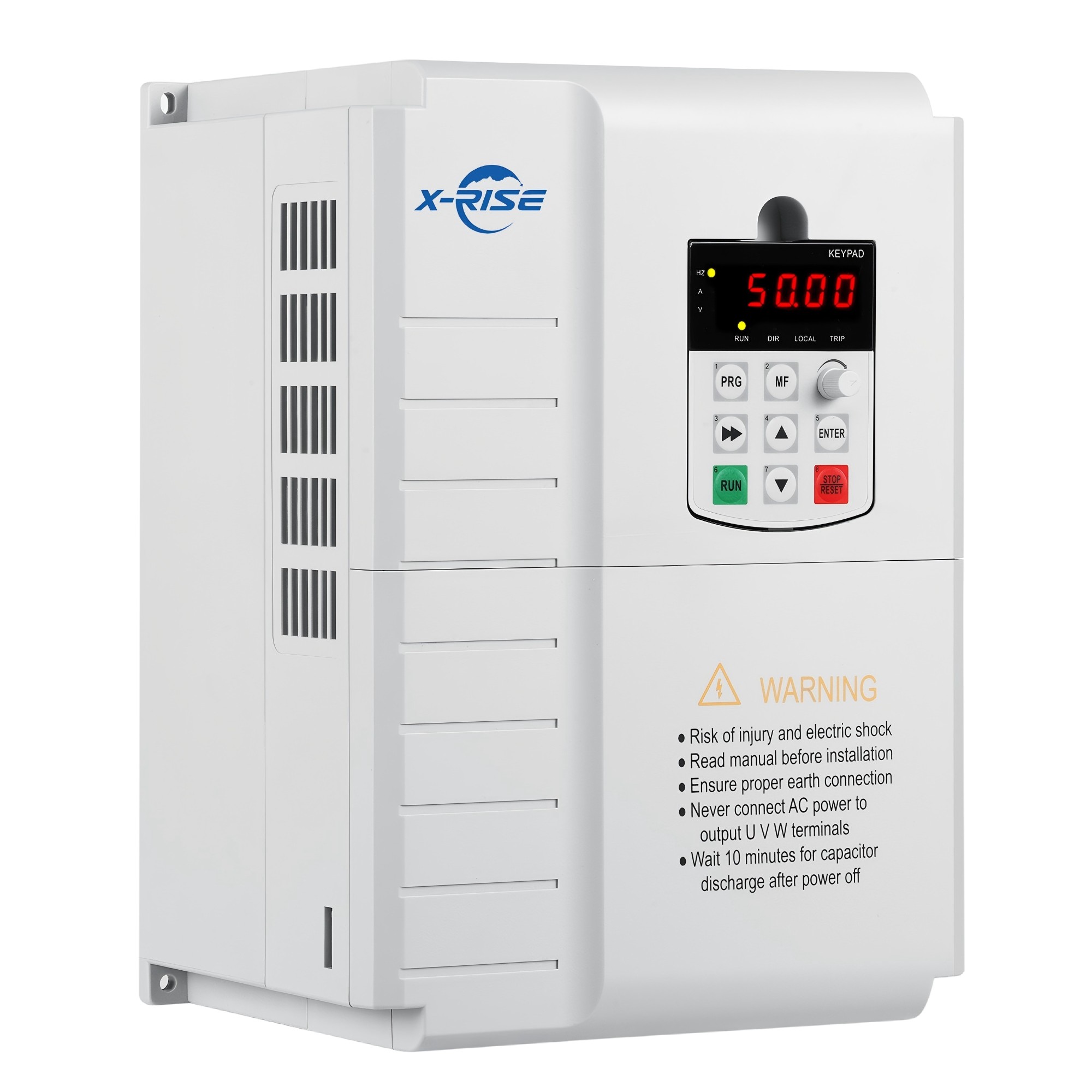

IP20 Solar Pump Inverter 2.2KW-11KW Used For Agriculture Irrigation Water Pumping MPPT Converter

Name: Solar pump inverter

Model: XRP2K2H-V1~XRP7K5H-V1

Power:Solar and AC Grid

Specification: 2.2-7.5KW, three phase, 380~480V

Frequency: 0~50/60HZ

Protection level: IP20

Communication: RS485 & GPRS

Inquiry

Description

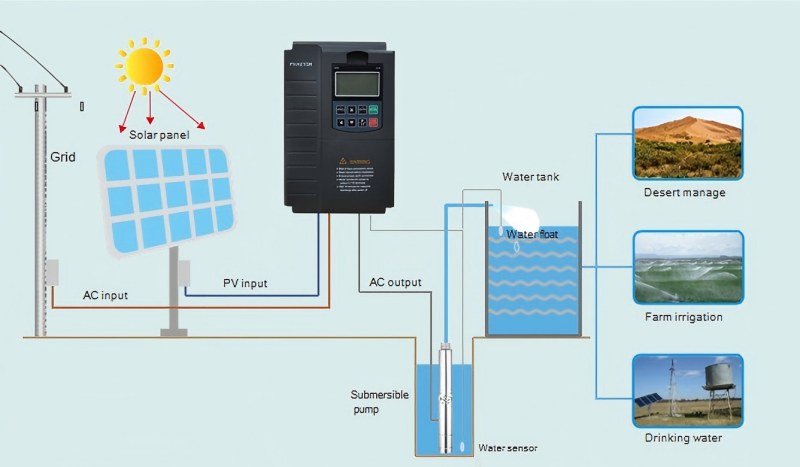

Solar Pump System Diagram

Solar Pump Inverter features

Ø Maximum power point tracking (MPPT) with fast response speed and stable operation efficiency> 99%
Ø Suits for most 3 phase AC pumps and AC PMSM high efficiency pumps
Ø Compatible with AC grid and DC power supply input at same time
Ø Built in automatic sleep-wake up function
Ø Dry run (under load ) protection
Ø Motor maximum current protection
Ø Low input power protection
Ø Lowest stop frequency protection
Ø The PQ (power/flow) performance curve enables calculating the flow output from the pump
Ø Digital control for fully automatic operation, data storage and protective functions
Ø Low water probe sensor, and water level control function

Ø Strong lightning protection
Ø Ambient temperature for using: -10 to +50˚C
Ø Clock relay card for timing stop and stop control
Ø LCD keypad as optional
Ø Input VOC auto-detect function

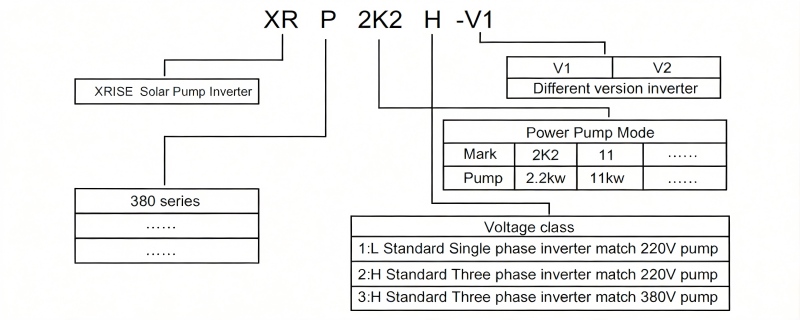

Product Datasheet & technical specification&Diagram

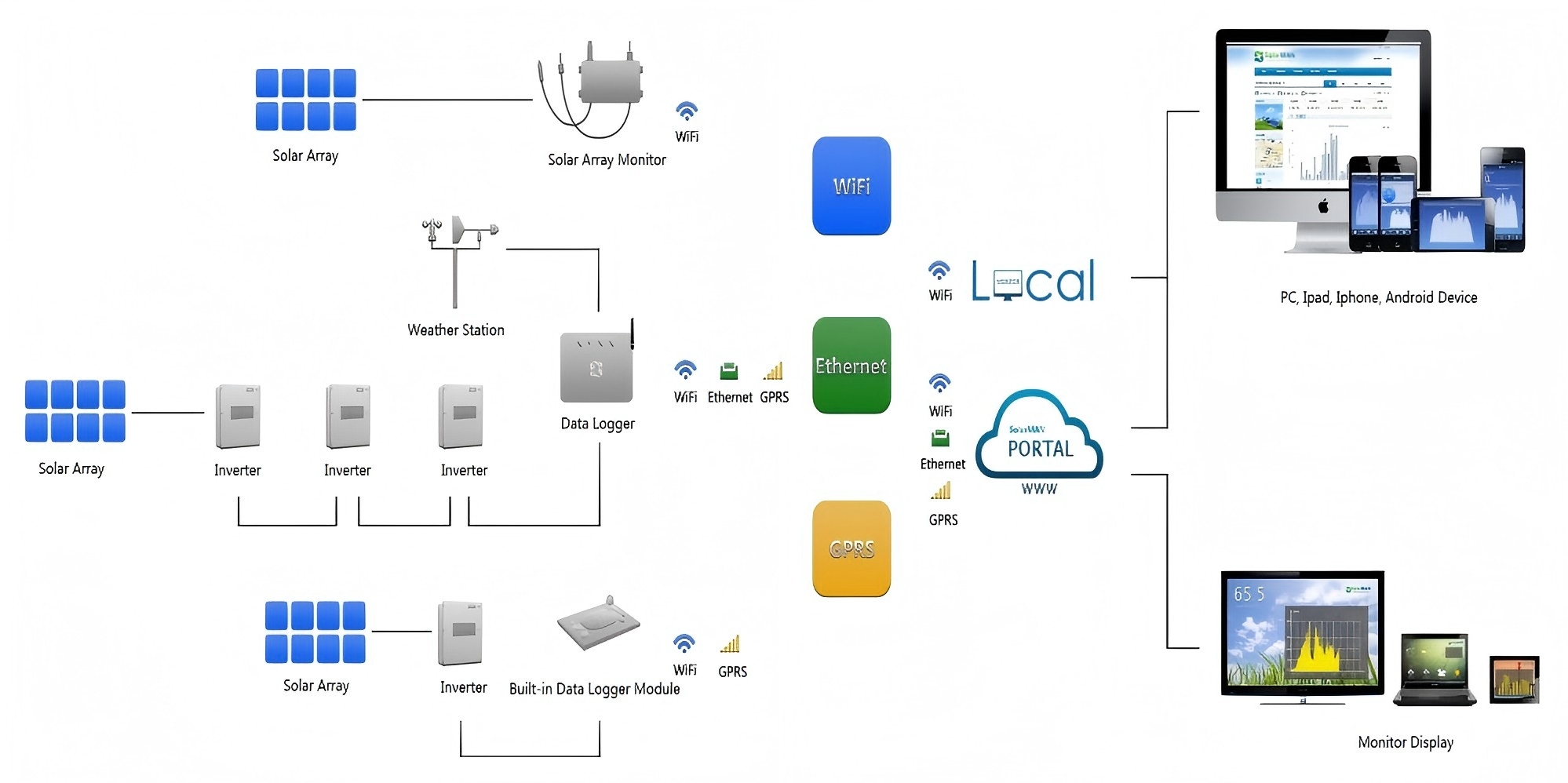

Monitoring Software

◆Control the solar pump inverter remotely;
◆Manage all solar pump inverters and systems;
◆Check system operating status at any time;
◆Read all system information on PC, tablet, iPhone, iPad or other electronic devices;
◆View alarm records and diagnose error codes;
◆Analyse data to ensure system is in good working condition;

Datasheet

Model	XRP4KH-V1	XRP5K5H-V1	XRP7K5H-V1	XRP11KH-V1
PV Input
D.C. Max. Input Voltage	800V
Recommended MPPT Voltage	485~750Vdc
D.C. Max. Input Current	45A	45A	45A	45A
Max. MPPT Efficiency	>99%
Number of String	1
A.C. Input
Voltage	330~460Vac(3PH) When PV and power grid are required to be mixed, accessory products need to be added
Frequency	50Hz/60Hz(±3%)
50Hz/60Hz(±3%)
Max. Motor Output Power	4kW	5.5kW	7.5kW	11kW
Rated Output Voltage	380~460Vac (3PH)
Output Frequency Range	0~50/60Hz
Rated Output Current	10A	13A	18A	21A
System
Protection Level	IP20
Operation Temperature	-25℃ to +50℃,above 50℃ need derate operating
Cooling Way	Force cooling
Display	LCD
Communicaton	RS485
Altitude	3000m, above3000m need derate operating
Noise Emission	<50dB
Compliance	EN 50178; IEC/EN 62109-1;IEC61800
