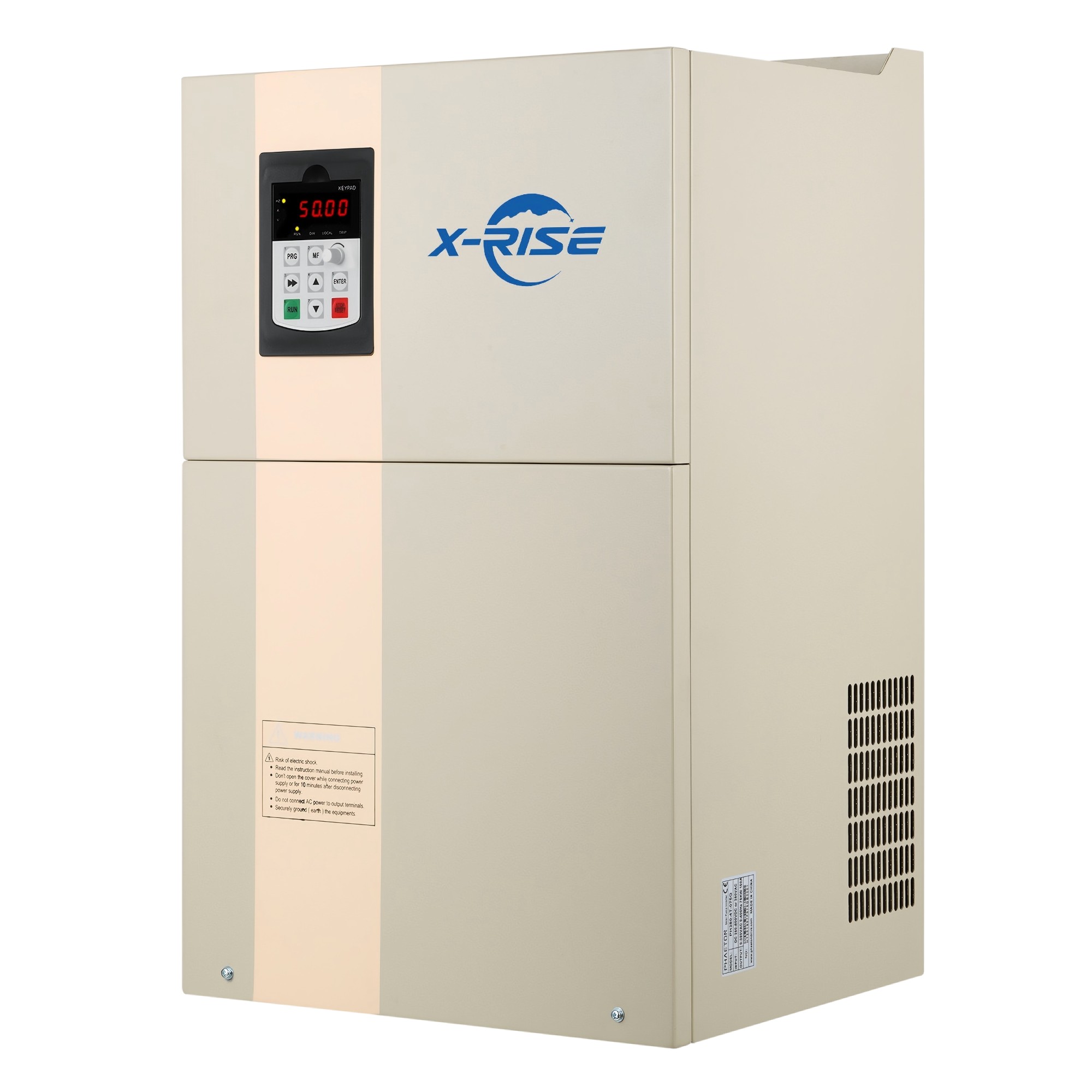

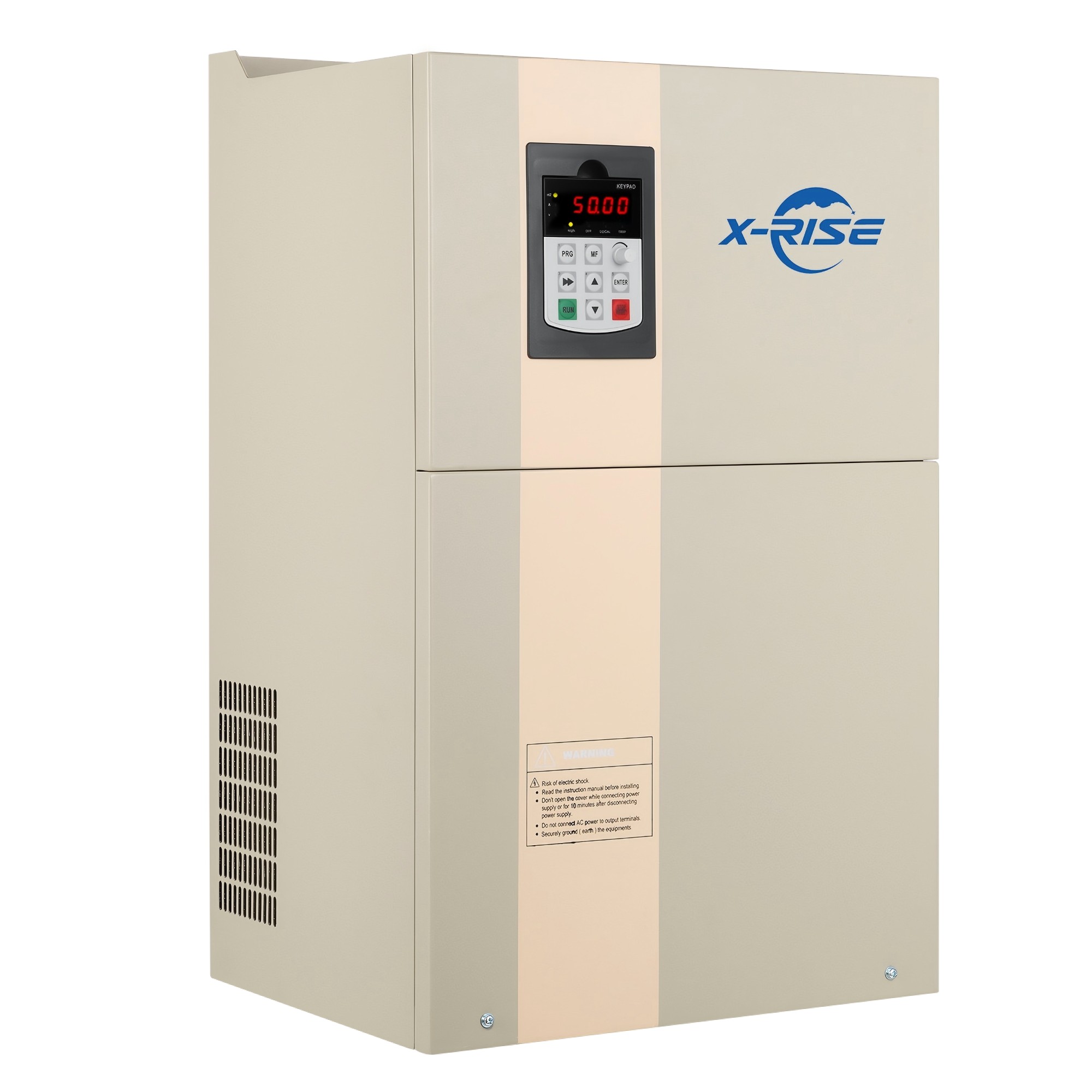

IP20 Solar Pump Inverter 132KW-220KW Used For Agriculture Irrigation
Name: Solar pump inverter Model: XRP132KH-V1~XRP220KH-V1 Power:Solar and AC Grid Specification: 132-220KW, three phase, 380~480V Frequency: 0~50/60HZ Protection level: IP20 Communication: RS485 & GPRS
Description

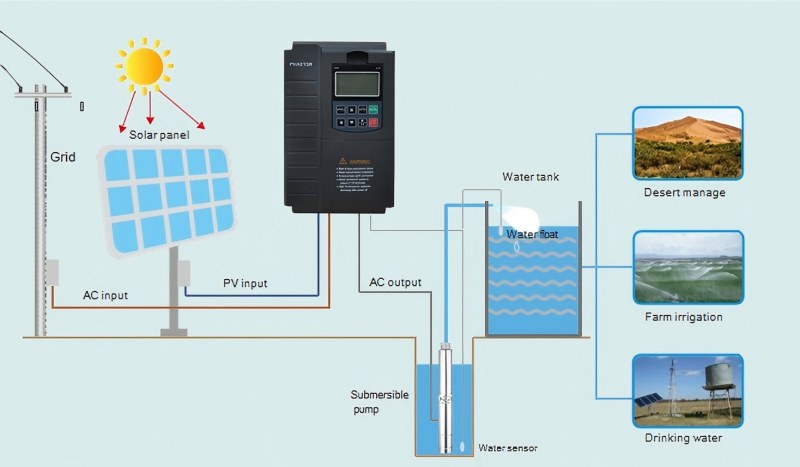

Solar Pump System Diagram
Solar Pump Inverter features
Ø Maximum power point tracking (MPPT) with fast response speed and stable operation efficiency> 99%
Ø Suits for most 3 phase AC pumps and AC PMSM high efficiency pumps
Ø Compatible with AC grid and DC power supply input at same time
Ø Built in automatic sleep-wake up function
Ø Dry run (under load ) protection
Ø Motor maximum current protection
Ø Low input power protection
Ø Lowest stop frequency protection
Ø The PQ (power/flow) performance curve enables calculating the flow output from the pump
Ø Digital control for fully automatic operation, data storage and protective functions
Ø Low water probe sensor, and water level control function
Ø Strong lightning protection
Ø Ambient temperature for using: -10 to +50˚C
Ø Clock relay card for timing stop and stop control
Ø LCD keypad as optional
Ø Input VOC auto-detect function

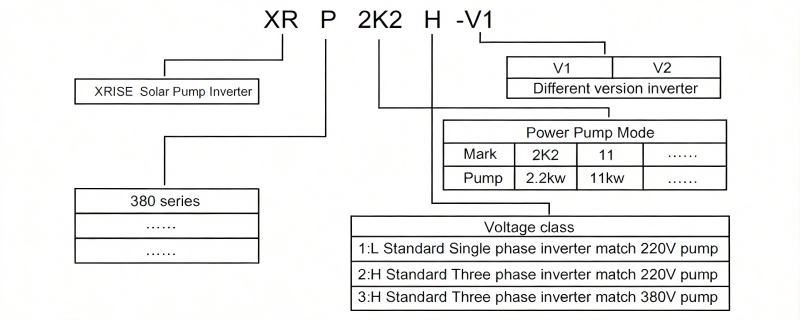

Product Datasheet & technical specification&Diagram

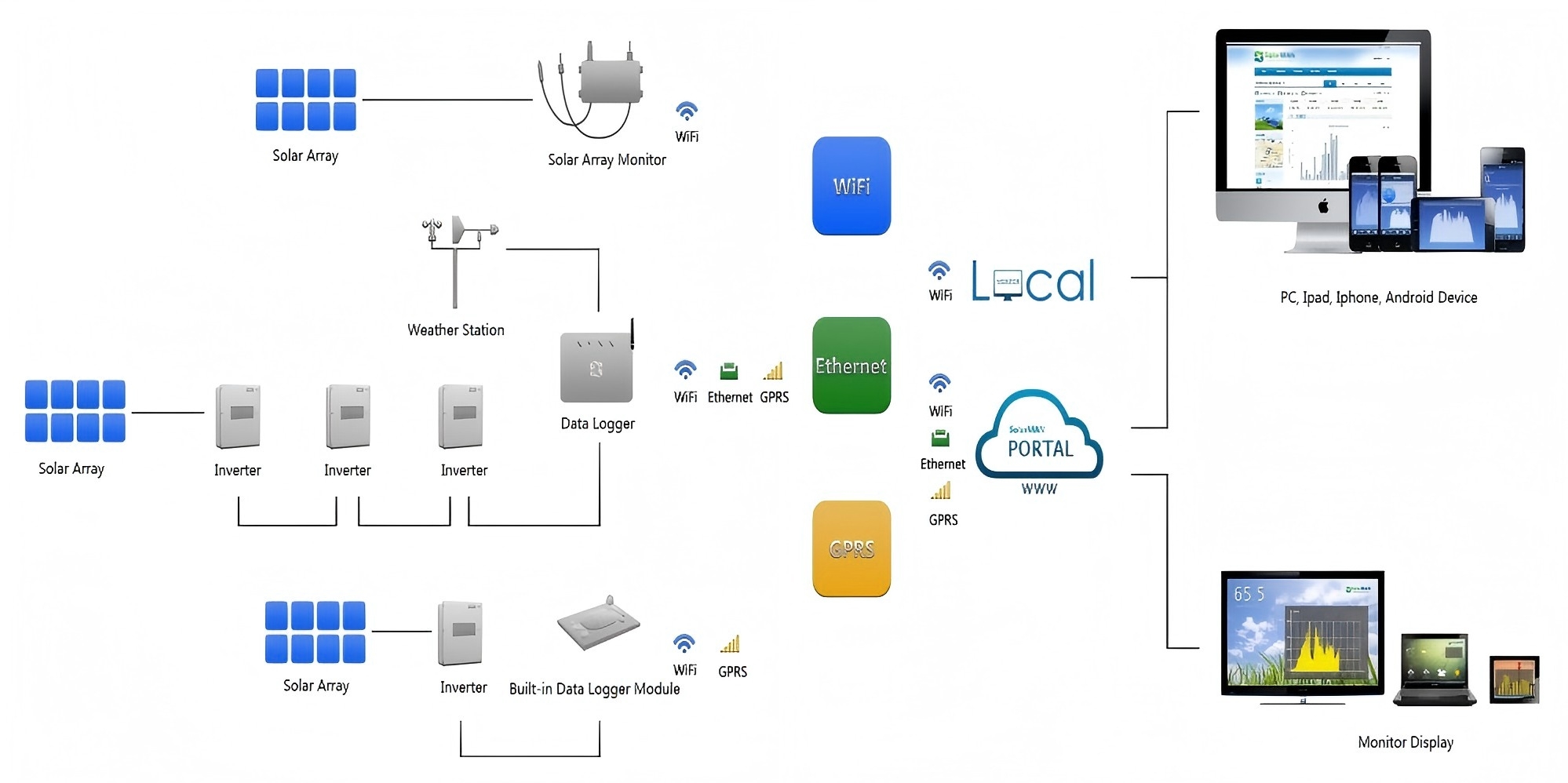

Monitoring Software
◆Control the solar pump inverter remotely;
◆Manage all solar pump inverters and systems;
◆Check system operating status at any time;
◆Read all system information on PC, tablet, iPhone, iPad or other electronic devices;
◆View alarm records and diagnose error codes;
◆Analyse data to ensure system is in good working condition;
Datasheet
| Model | XRP132KH-V1 | XRP160KH-V1 | XRP185KH-V1 | XRP200KH-V1 | XRP220KH-V1 |
| PV Input | |||||
| D.C. Max. Input Voltage | 800V | ||||
| Recommended MPPT Voltage | 485~750Vdc | ||||
| Max. MPPT Efficiency | >99% | ||||
| Number of String | 1 | ||||
| A.C. Input | |||||
| Voltage | 330~460Vac(3PH) When PV and power grid are required to be mixed, accessory products need to be added | ||||
| Frequency | 50Hz/60Hz(±3%) | ||||
| A.C.Output | |||||
| Max. Motor Output Power | 132kW | 160KW | 185kW | 200kW | 220kW |
| Rated Output Voltage | 380~460Vac (3PH) | ||||
| Output Frequency Range | 0~50/60Hz | ||||
| Rated Output Current | 250A | 304A | 340A | 377A | 426A |
| Mechanical data | |||||
| Dimensions(W/H/D)(mm) | 680/485/415 | 885/535/370 | 885/535/370 | 1180/760/450 | 1180/760/450 |
| Weight | 55kg | 86kg | 98kg | 104kg | 180kg |
| System | |||||
| Protection Level | IP20 | ||||
| Operation Temperature | -25℃ to +50℃,above 50℃ need derate operating | ||||
| Cooling Way | Force cooling | ||||
| Display | LCD | ||||
| Communicaton | RS485 | ||||
| Altitude | 3000m, above3000m need derate operating | ||||
| Noise Emission | <50dB | ||||
| Compliance | EN 50178; IEC/EN 62109-1;IEC61800 | ||||
The XRISE team has been developing innovative energy products since 2010. We have always put our customers’ needs first, focusing on the quality of our solar pump inverters and providing customer service that’s second to none. Twelve years of hard work have paid off, with a strong global reputa on and our solar pump inverters currently in use in more than 50 countries. XRISE products have passed tests from government engineers, NGOs, UNDP, UNHCR, UNICEF, OCHA,and ICRC in Asia, Africa and the Middle East, and their specifica ons and features have set the standard for solar pumpsystem tenders in these countries.Every member of the XRISE team works hard to reward our customers’ trust and uphold our reputa on. As a company, we never stop looking for new ways to make the world greener.
