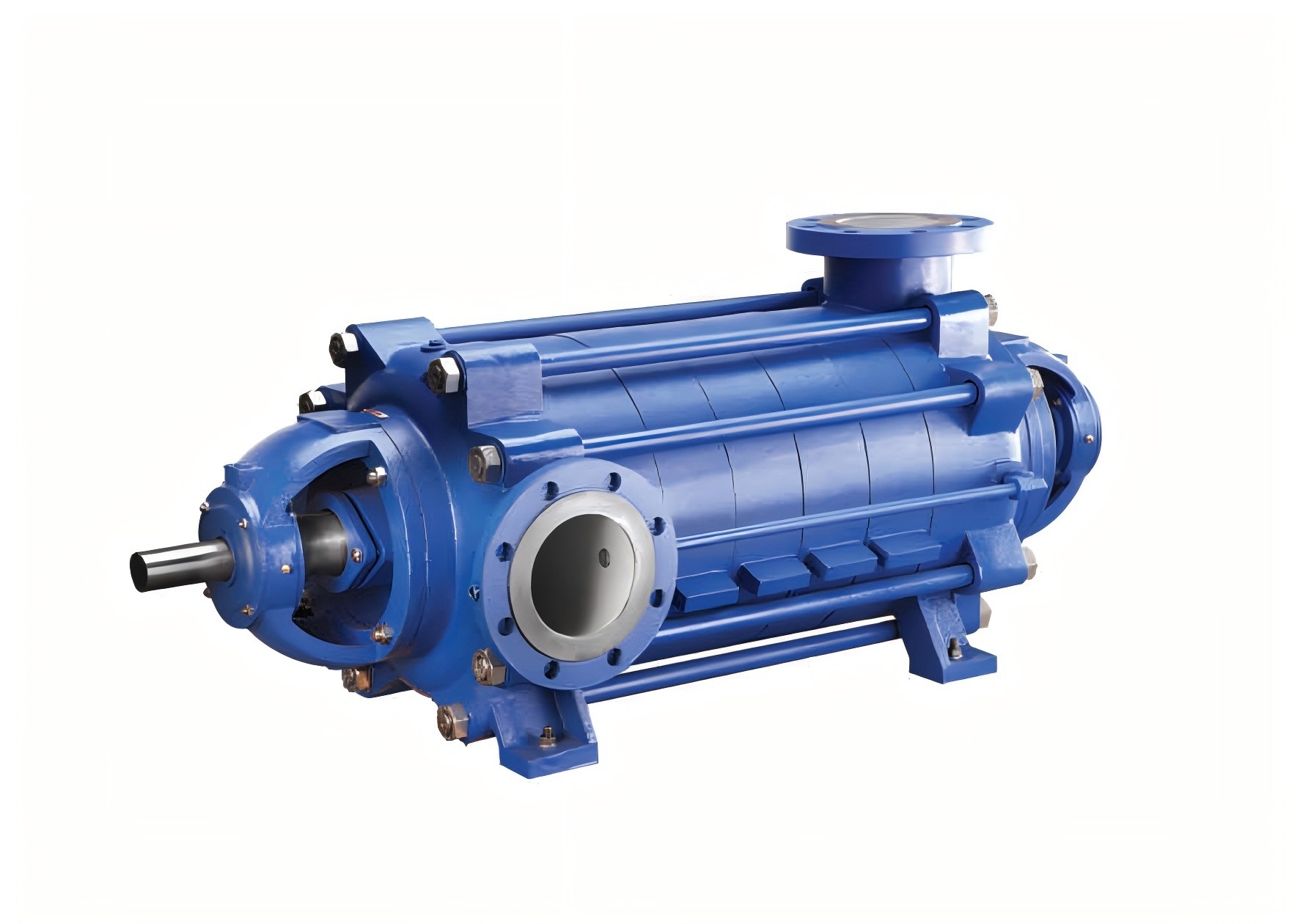

Multistage Horizontal Centrifugal Pump

Product Item：HMC25-50X3
● Clear water and the liquid whichis similar with clear water on the physical and chemical
properties.
● Corrosive medium which hasn't the particles such as the trade waste, saltwater,acid
water, and sea water etc.
● Corrosive medium which has many solid particles such as the sewage , waste r water,
water with sand and oxide scale water etc.
● Temperature not exceeds 80℃.
Diameters ofinlet and outlet: 40~300mm
Capacity: Q=3.75~1020m²h
Head: H=19~1080m

Inquiry

Description

Multistage Horizontal Centrifugal Pump

Medium

●Clear water and the liquid which is similar with clear water on the physical and chemicalproperties.

●Corrosive medium which hasn't the particles such as the trade waste, saltwater, acidwater, and sea water etc.

●Corrosive medium which has many solid particles such as the sewage, waster water,water with sand and oxide scale water etc.Temperature not exceeds 80C.

Operating data

Diameters of inlet and outlet: 40~300mm

Capacity: Q=3.75~1020m2/h

Head: H=19~1080m

Application

●Water Plant

●Pressure Boosting

●Fire Fighting

●Sprinkling and Irrigation

●General Industrial

●ServicesMinesBoiler

●FeedSea Water

Design

●HMC pump is horizontal, radially split ring section pumps of modular design.

●HMC pump is high efficiency, wide application, safety and reliable running. low noise,easy installation and maintains, and long service life etc.

●NDB Bearing Arrangement with Balance DiskWith a balance disk the axial force is completely compensated, no axial thrust bearingis required. Due to the smaller balancing leakage flow, total efficiency of the pump ishigher compared to the balance drum design.

●Investment cost as well as life cycle cost is taken into consideration when designing thebest possible pump. An optimized hydraulic design guarantees best efficiency.

Construction Features

●Suction is on the horizontal direction, the discharge is on the vertical direction.

●The rotor assembly: the impeller, shaft sleeve, balance disc etc.

●The mechanical seal or the packing seal is optional.

●Pump is clockwise viewed from the prime mover.

●The pump can be the multi-discharge construction and function according to the customer's requirements.

Material of the pump

Casing: Castiron Ductile Cast Iron Cast Steel

Impeller: CastironBronze Duplex S.S Stainless Steel or Duplex S.S Stainless Steel

Shaft:C-Steel Cr-Steel Stainless Steel

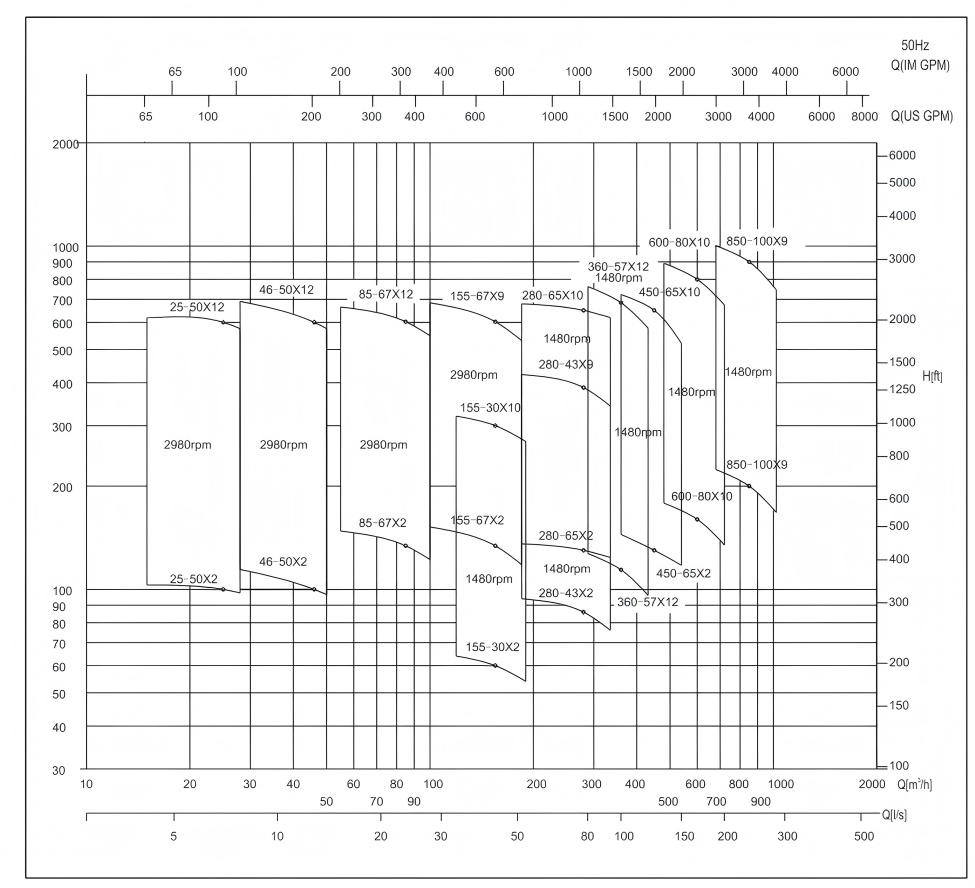

HMC Pump Selection Chart
