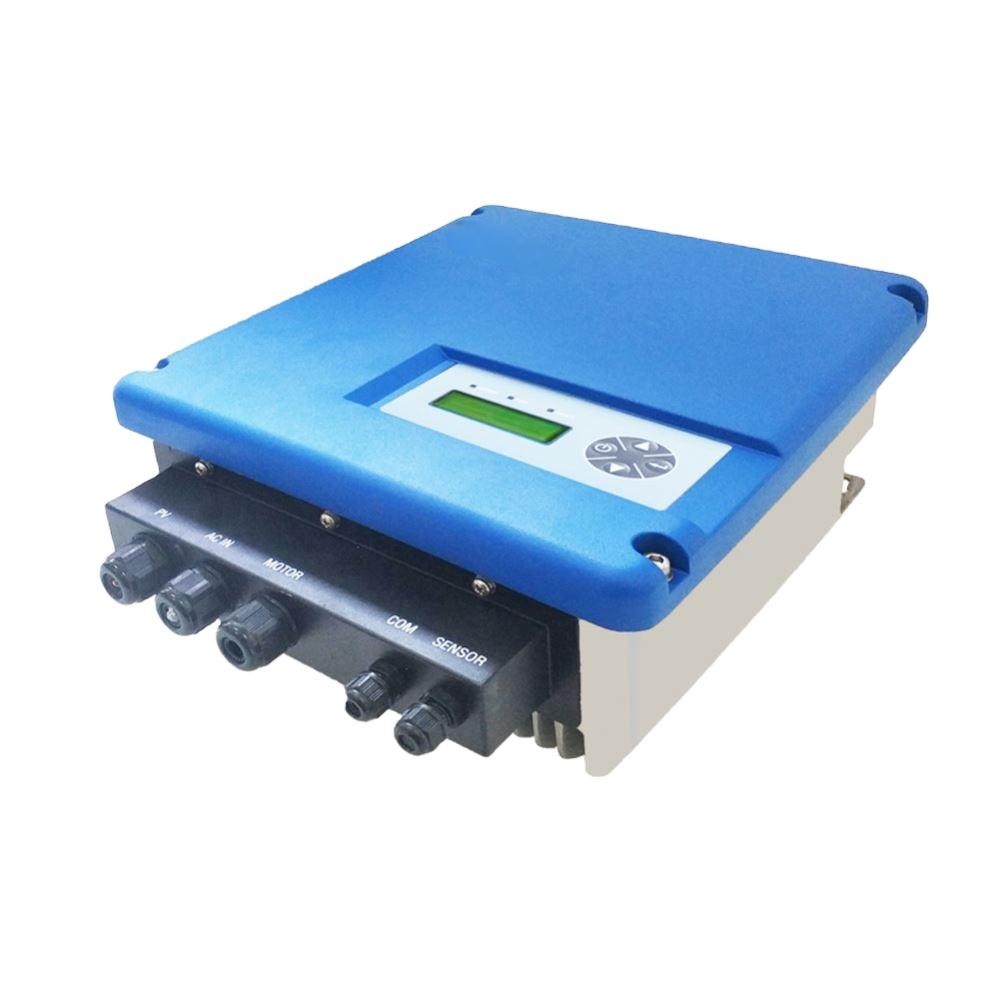

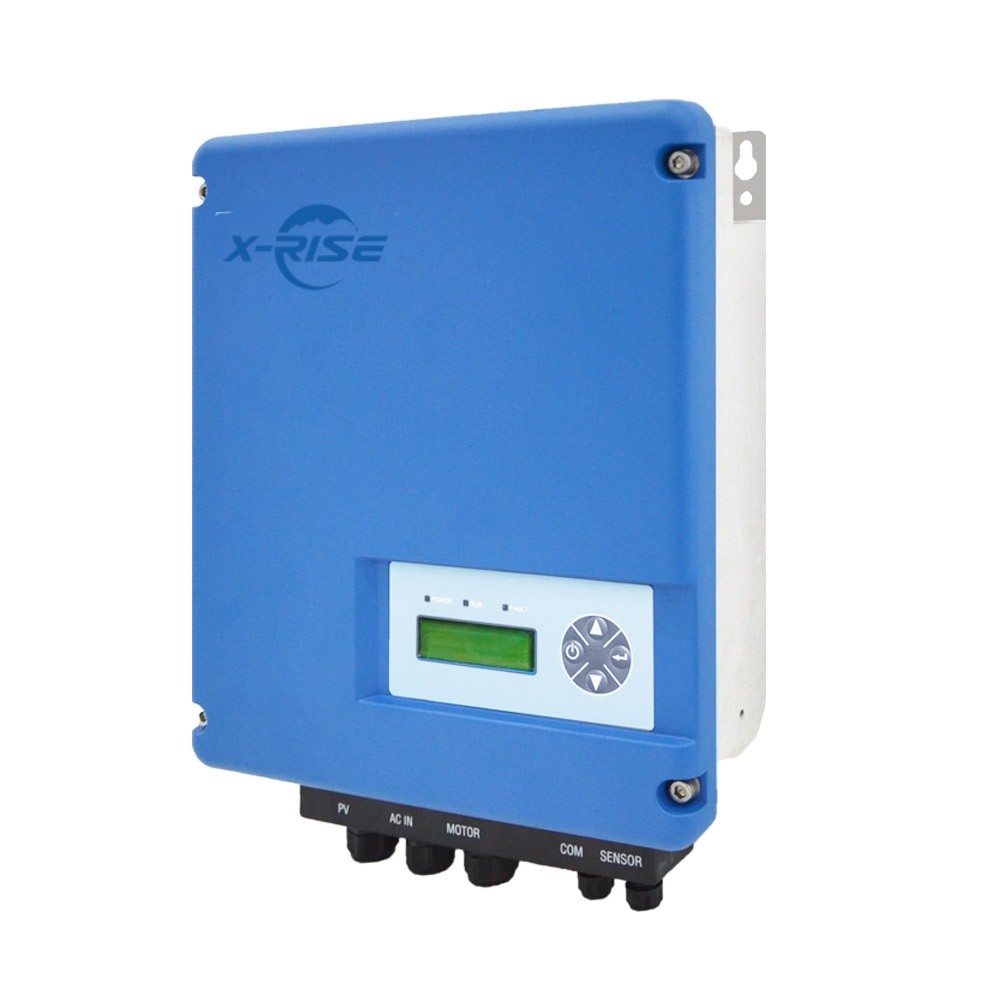

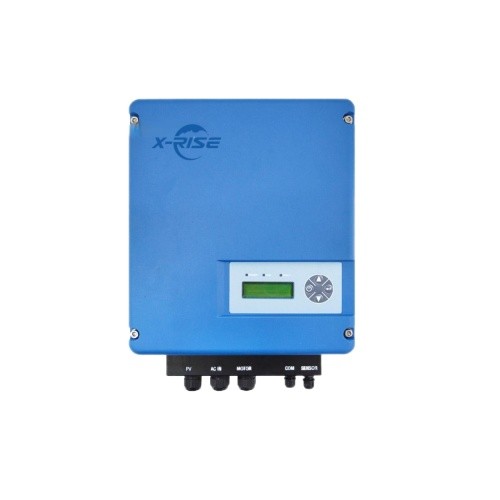

Xrise 550W-4000W Single Phase IP65 Hybrid Solar Pumping Inverter Used For Agriculture Irrigation System
Product Item：XRP2K2L-V5 Name: Solar pump inverter Model: XRP2K2L-V5 Specification: 550W-4000W, Single Phase, 220V Frequency: 0~50/60HZ Protection level: IP65 Communication: RS485/GPRS/BLUETOOTH
Description
IP65 Solar Pump Inverter Introduction
The solar pumping inverter controls and regulates the operation of the photovoltaic water lifting system, converts the direct current emitted by the photovoltaic array into alternating current, drives the pump, and adjusts the outputfrequency in real time according to the change of sunshine intensity to achieve maximum power point tracking (MPPT).
AC single-phase/three-phase solar pump inverter;
Output voltage 220V~230V AC /380~460V AC;
Power of low voltage ranges from 0.37kw to 4kw;
Power of high voltage ranges from 2.2kw to 132kw.
Features
▲Reliable solution for agricultural irrigation, daily water, or desert control in water-deficient areas without electricty
▲Wide application with all kinds of PV modules and three- and one-phase AC pumps
▲IP 65 for outdoor application
▲Max. operating temperature of 60℃ / 140℉
▲GPRS remote monitoring for real-time opera on status and on/off control
▲Excellent performance during cloudy weather, with 5% more water output compared to the competition
▲ROI of less than 2 years compared to diesel generator
▲Fully automatic unatiended operation with perfect protection functions for a lifespan of 25 years
▲2-year warranty for complete system; 10 years for PV modules
Solar Pump Inverter Advantages
Critical Performance Index

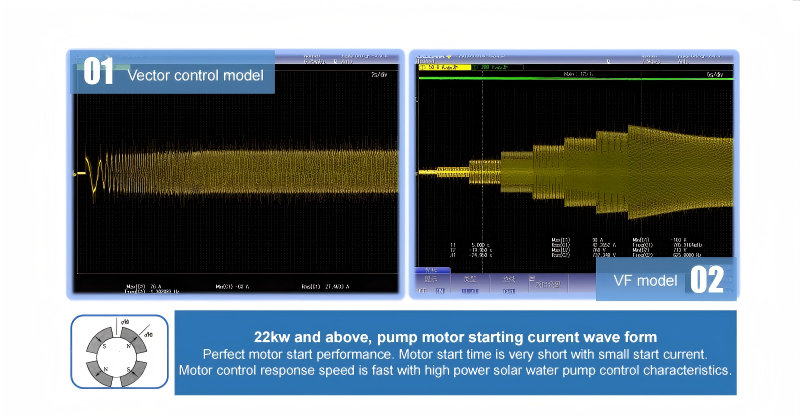

◆Perfect motor start performance. Motor start time is very short with small start current.
◆Motor control response speed is fast with high power solar water pump control characteristics.

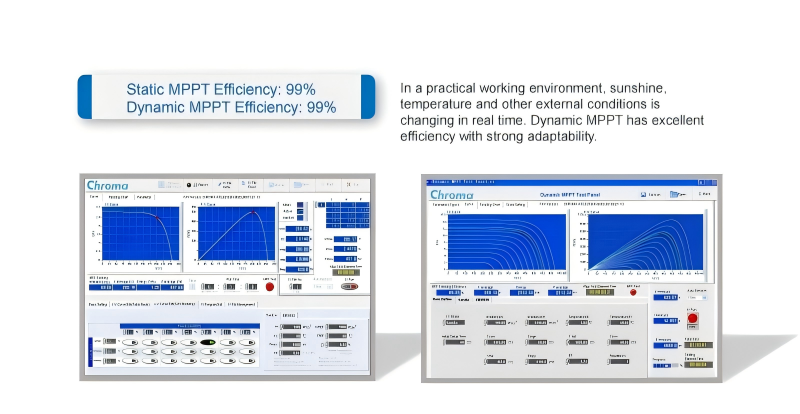

◆In a practical working environment, sunshine, temperature and other external conditions is changing in real time. Dynamic MPPT has excellent efficiency with strong adaptability.

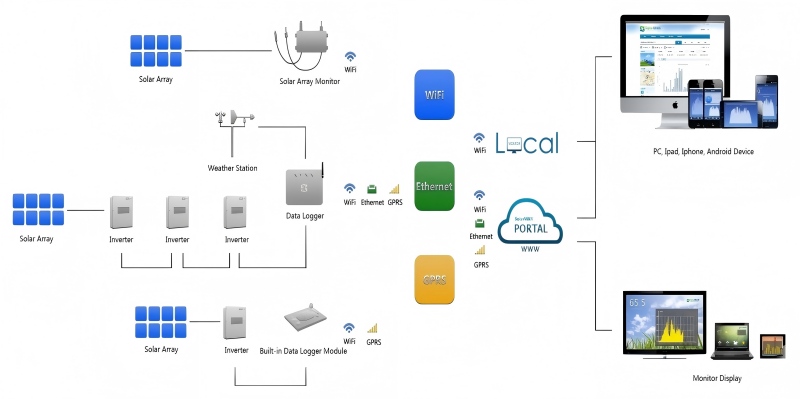

Monitoring Software
◆Control the solar pump inverter remotely
◆Manage all solar pump inverters and systems
◆Check system operating status at any time
◆Read all system information on PC, tablet, iPhone, iPad or other electronic devices
◆View alarm records and diagnose error codes
◆Analyse data to ensure system is in good working condition
Datasheet Of Solar Pump Inverter
| Model | XRI550L-V5 | XRI750L-V5 | XRI1K1L-V5 | XRI1K5L-V5 | XRI2K2L-V5 | XRI3KL-V5 | XRI4KL-V5 |
| PV Input | |||||||
| D.C. Max. Input Voltage | 450V | ||||||
| Recommended MPPT Voltage | 150-400V | ||||||
| D.C. Max. Input Current | 15A | 15A | 15A | 15A | 15A | 20A | 20A |
| Max. MPPT Efficiency | >99% | ||||||
| Number of String | 1 | ||||||
| A.C. Input | |||||||
| Voltage | 198-265Vac (1PH) | ||||||
| Frequency | 50Hz/60Hz(±3%) | ||||||
| 50Hz/60Hz(±3%) | |||||||
| Max. Motor Output Power | 0.55kW | 0.75kW | 1.1kW | 1.5kW | 2.2kW | 3kW | 4kW |
| Rated Output Voltage | 198-265Vac (1PH) | ||||||
| Output Frequency Range | 0~50/60Hz | ||||||
| Rated Output Current | 6A | 7A | 9A | 10A | 10A | 13A | 18A |
| System | |||||||
| Protection Level | IP65 | ||||||
| Operation Temperature | -25~60℃ | ||||||
| Cooling Way | Force cooling | ||||||
| Display | LCD | ||||||
| Communicaton | RS485/GPRS | ||||||
| Altitude | 3000m, above3000m need derate operating | ||||||
| Noise Emission | <50dB | ||||||
| Compliance | EN 50178; IEC/EN 62109-1;IEC61800 | ||||||
| Dimension（W/H/D） | 260/310/150(mm) | ||||||
| Weight | 6.5kg | ||||||
The XRISE team has been developing innovative energy products since 2010. We have always put our customers’ needs first, focusing on the quality of our solar pump inverters and providing customer service that’s second to none. Twelve years of hard work have paid off, with a strong global reputa on and our solar pump inverters currently in use in more than 50 countries. XRISE products have passed tests from government engineers, NGOs, UNDP, UNHCR, UNICEF, OCHA,and ICRC in Asia, Africa and the Middle East, and their specifica ons and features have set the standard for solar pumpsystem tenders in these countries.Every member of the XRISE team works hard to reward our customers’ trust and uphold our reputa on. As a company, we never stop looking for new ways to make the world greener.
